MFJ DC Multiple Outlet Panels MFJ-1124

Deluxe DC Power Outlet Strip, 6-outlet, 4 PowerPoles and 2 HD Binding Posts 40 A High Current Max, Fuses, Each

Estimated Ship Date: 4/21/2014 (if ordered today)

Would you rather pick it up at Summit Racing Equipment in Tallmadge OH? | Select

Price:

$64.95

Quantity
+Compare
Brand: MFJ
Manufacturer's Part Number: MFJ-1124
DXE Part Number: MFJ-1124

High Current Maximum: 40 A
High Current Power Poles: Yes
High Current Power Pole Outputs: 2
High Current Binding Posts: Yes
High Current Binding Post Outputs: 2
Low Current Output On/Off Switch: No
Low Current Power Poles: Yes
Low Current Power Pole Outputs: 2
Low Current Binding Posts: No
Voltage Monitor: No
Audible Voltage Alarm: No
Built-In Voltmeter: No
Programmable Fault Thresholds: No
Input Cable Installed: Yes
Fused Input: Yes
Individually Fused Outputs: Yes
Combined Fused Outputs: Yes
Fuses Included: Yes
Outlet Panel Width: 8.000 in.
Outlet Panel Height: 4.000 in.
Outlet Panel Depth: 2.750 in.
Quantity: Sold individually.

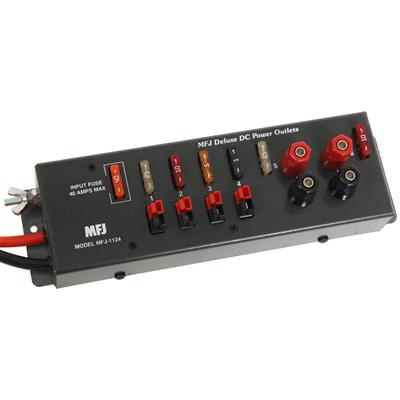

MFJ-1124 6-Outlet Deluxe DC Power Outlet Strips are heavy-duty power distribution strips. Outlets 1 through 4 are Anderson PowerPole outlets, while outlets 5 and 6 are 35A high-current binding posts. Each Anderson PowerPole outlet can carry up to 40 amps. You can fuse each outlet as needed to protect your accessories or transceiver. The main fuse is 40 amps. The standard color-coded fuses simply plug in from the outside. They are widely available ATC/ATO automobile fuses and can be used for 6, 12, or 24 V DC systems. The heavy-duty red and black color-coded DC input cable is built-in, so you don't have to pay extra just to use it! It's a high-current carrying capacity, 8-gauge, flexible, stranded 6 ft. cable with 5/16 in. ring terminals (cable can be shortened). The RF-tight aluminum cabinet has mounting ears and a ground post with wing nuts, plus a massive 0.062 in. thick double-sided, plated-through PC board with wide traces. The current path has the current-carrying capacity of an enormous 4 oz. trace.
