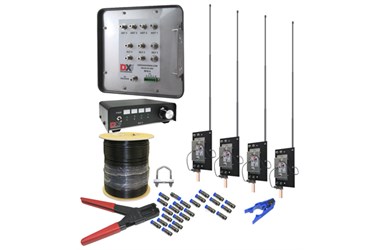

DX Engineering Receive Four Square Array Systems DXE-RFS-SYS-4S

The DX Engineering Receive Four Square Array System achieves dramatically improved reception of weak distant signals with excellent rejection of extraneous signals and noise in other directions. This four-direction switchable array uses time delay phasing of four physically short receiving vertical elements. The resulting directional receiving pattern is superior to short Beverage antennas or typical two or three element arrays. The Receive Four Square is less susceptible to high angle signals than EWE, Flag, Pennant, K9AY and SAL antennas. This short vertical element receive array limits signal and noise for dramatically superior weak signal reception, as compared to full size transmitting antennas and arrays. With proper spacing of four unobtrusive 8.5 ft. vertical elements, the Receive Four Square Array System is a high performance, directional receive antenna for HF Amateur, SWL or AM DXing.DX Engineering Receive Four Square Arrays offer directional performance comparable to four long Beverage wire antennas, using far less land area. The DXE-RFS-SYS-4S system includes the DXE-RFS-3 Receive Four Square Array Controller and two pairs of our short Active Receive Vertical Antennas, DXE-ARAV4-2P. The Actives are now packed in a 38 x 5 x 5 in. carton for significantly reduced shipping cost. Three sections of 3 ft. aluminum tubing, 0.500, 0.375 and 0.250 inch OD, assemble to a height of only 8.5 ft., so each self-supporting element is truly stealthy. Each Active simply mounts inches above the earth onto a ground rod. This complete array system also includes the DXE-EC-4 Directional Control Console, one 1,000 ft. roll of RG6 cable, all cable prep tools, connectors and hardware for construction of the array. Required ground rods and control cable are purchased separately. Build an exceptionally effective, electronically rotatable, stationary receive antenna that lets you hear the DX that cannot be heard on a transmit antenna. Dig the weak signals out of the noise with an antenna that can help make your station one of the best. Order and install the DX Engineering Receive Four Square Array System.

DXE-RFS-SYS-4S

The patented DXE-RFS-3 DX Engineering Receive Four Square Array Controllers are the heart of a sophisticated receiving system that uses time delay phasing rather than the conventional narrow-band, frequency-dependent phasing systems. The time delay phasing is directivity-optimized to produce wider and deeper rear nulls and a narrower main lobe. The result is that noise and undesirable signals are greatly reduced for a superior front-to-rear ratio (F/R). Better control of phase and currents provides a cleaner pattern than those found on available transmit four square arrays.The RFS-3 DX Engineering Receive Four-Square Array Controllers are the switch relay units that are optimized to use the DX Engineering's Active Vertical Antenna Package DXE-ARAV4-4P of four active verticals. These products together offer great F/R response over several HF bands. DX Engineering's Active Receive Antenna System offers excellent receiving performance using only a 8.5 ft. antenna element. A unique design makes it vastly superior to traditional active antennas in both strong signal handling and feedline decoupling. This results in significantly better weak signal reception due to lower spurious signal interference and reduced noise.Finally, these systems offer greater reliability in receiving applications. The RFS-3 feature sealed relays sized for receiving applications with silver contacts to prevent oxidation and contamination. Most transmitting four-square switches use large, open-frame relays where the contacts are exposed to air, which can lead to contamination. Relays with brass contacts can oxidize, leading to poor conductivity.Advantages of the RFS-3 Receive Four-Square Antenna Systems over other small or medium-size receiving arrays include: * Reduced susceptibility to high angle signals compared to EWE, Flag, Pennant, and K9AY antennas* Excellent directivity in a small space for better signal-to-noise ratio* Switchable in four 90 degree spaced directions* Directivity over a very wide frequency range using DX Engineering DXE-ARAV4-4P active elements* Less physical space required than a Beverage antenna, and active elements need only a minimal ground system* Enhanced relay contact reliability
