DX Engineering Clifton Laboratories Z10020 AM Band Filter Module

DX Engineering Clifton Laboratories Z10020 AM Band Filter Module drastically reduces RF signals in the 530 to 1700 kHz MW range while passing frequencies below and above this range with minimal attenuation. A large section of the AM Broadcast Band (BCB) is attenuated by nearly 70db with a maximum of 75dB. Response rolls off quickly above 490 kHz and below 1.8 MHz. Here are detailed plots that demonstrate the excellent performance of this AM band receiving rejection filter.

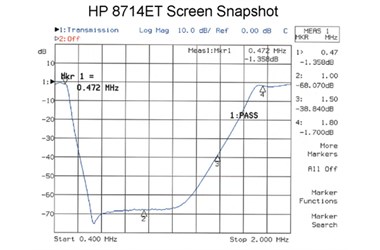

DX Engineering Clifton Labs Z10020 AM Filter

DX Engineering Clifton Labs Z10020 AM Band Reject Filter 400 kHz to 2 MHz

The DXE-Z10020-PM RX AM Reject Filter plug-in module is our version of the 7th Order Chebyshev design built to deliver the performance of the original Clifton Labs AM Broadcast Band (BCB) filter. It provides excellent Broadcast Interference (BCI) filtering performance for Amateur low band and commercial SW receive applications, with less than 2dB insertion loss across the 160 meter band.

DX Engineering Clifton Labs Z10020 AM Filter

DX Engineering Clifton Labs Z10020 AM Band Reject Filter 1.6 to 2.1 MHz

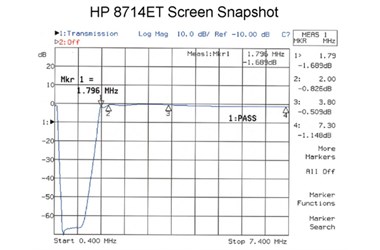

DX Engineering Clifton Labs Z10020 AM

DX Engineering Clifton Labs Z10020 AM Band Reject Filter 400 kHz to 7.4 MHz

These versatile AM filter modules also may be installed inside of the DXE-RPA-2 Receive Preamplifier or the DXE-RTR-2 Receive Antenna Interface. Two of these AM BCB Reject Filter modules will cover both channels of the DXE-NCC-2 Receive Antenna Phasing Unit.

The DXE-Z10020-PM module can be installed in the DXE-DMC-2 Dual Module Chassis to create a stand-alone, inline high-performance receive-only AM Band Reject Filter.

DX Engineering Dual Module Chassis

DX Engineering Dual Module Chassis for External Plug-In Modules

Specifications

Brand:
Manufacturer's Part Number:
DXE-Z10020-PM
Part Type:
Product Line:
DXE Part Number:
DXE-Z10020-PM
Receive Antenna System Device Type:
Band reject filter module
Receive Feedline Connector Type:
None
Receive Device Width:
3.000 in.
Receive Device Height:
0.750 in.
Receive Device Depth:
1.500 in.
Quantity:
Sold individually.
