Hamplus Antenna Control Switching Devices
Antenna Switch, Relay Unit, 12 Antenna Inputs to 6 Radio Outputs, Controlled by MBD-12F, Each
See More Specifications
Estimated Ship Date: May 7, 2026 Would you rather pick it up?
Overview

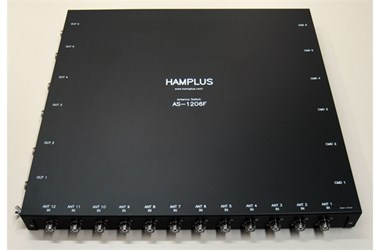

Hamplus Antenna Switch Relay Unit, 12 Antenna Inputs and 6 Radio Outputs
Hamplus AS-1206F Antenna Switch
- Antenna Switch with twelve antenna inputs and six transceiver outputs
- Remotely controlled by one console for each radio position, model MBD-12F or RC-12
- Allows simultaneous operation of each radio with different antennas
- DC to 60 MHz frequncy coverage
- 5000 Watts PEP power handling
- 66 dB port isolation at 30 MHz
- SO-239 (UHF female) RF connectors and DB-25 for remote control
- All antenna inputs are switched to ground when not selected and with power off for protection purposes
- Aluminum cabinet painted dark gray
- Cabinet Flanges for mounting indoors or in an outdoor weatherproof enclosure - four mounting flange holes are 3/16 in. (5 mm)
Specifications
Brand:
Manufacturer's Part Number:
AS-1206F
Part Type:
Product Line:
DXE Part Number:
HPY-AS-1206F
Control Component Type:
Multi-Port Antenna Relay Unit
Overall Width (in.):
20.25 in.
Overall Height (in.):
2.00 in.
Overall Depth (in.):
18.898 in.
Quantity:
Sold individually.
Notes:
Additional device(s) required for operational system. See text.
