Hamplus Antenna Control Switching Devices
Antenna Switch, Remote, Outdoor, 8 Input to 1 Output, 0-60 MHz, SO-239, 5 kW PEP, Each
See More Specifications
Overview

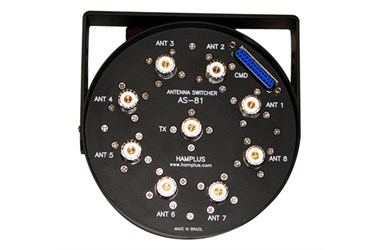

Hamplus AS81 Remote Antenna Switch

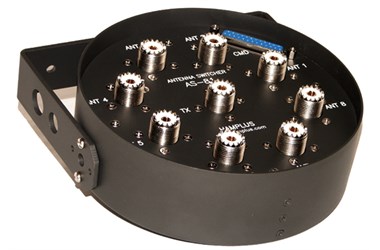

Hamplus AS81 Remote Antenna Switch - underside view (click to enlarge)
Hamplus AS81 Remote Antenna Switch
- Hamplus AS81 Antenna Switch remote relay units have eight inputs and one output
- Remote control by Hamplus Smart Antenna Switch Control, model MBD-8E, MBD-8F or RC-12
- Aluminum cabinet painted dark gray color especially developed for outdoor use
- SO-239 (UHF female) RF connectors and a DB-25F for remote control
- 5000 watts PEP power handling at SWR of 1.7:1 less
- DC to 60 MHz frequency coverage
- 58 dB or better port isolation at 30 MHz and below
- 52 dB or better port isolation at 54 Mhz and below
- Operates on 13.8 Vdc from controller
- All antenna inputs are switched to ground when not selected or power is off
Hamplus AS81 Remote Antenna Switch - underside view
Specifications
Brand:
Manufacturer's Part Number:
AS-81
Part Type:
Product Line:
DXE Part Number:
HPY-AS-81
Control Component Type:
Multi-Port Antenna Relay Unit
Overall Width (in.):
6.38 in.
Overall Height (in.):
2.00 in.
Overall Depth (in.):
6.300 in.
Quantity:
Sold individually.
Notes:
Additional device(s) required for operational system. See text.
