Technical Articles for Part Number HPY-AS-82F
Hamplus Antenna Control Switching Devices
Antenna Switch, Relay Unit, 8 Antenna Inputs to 2 Radio Outputs, Controlled by MBD-8G -8F, -8E, Each
See More Specifications
Estimated Ship Date: Today Would you rather pick it up?
Overview

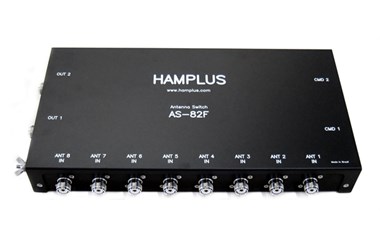

Hamplus AS-82F Antenna Switch
Hamplus AS-82F Antenna Switch
- Hamplus AS-82F Antenna Switch relay units have eight antenna inputs and two radio outputs
- Remote control by Hamplus Smart Antenna Switch Control, model MBD-8GMBD-8E or legacy models MBD-8F
- Allows simultaneous operation of each radio with different antennas
- SO-239 (UHF female) RF connectors and a DB-25F for remote control
- 5000 watts PEP power handling at SWR of 1.7:1 less
- DC to 60 MHz frequency coverage
- 85 dB or better port isolation at 30 MHz and below
- 82 dB or better port isolation at 54 Mhz and below
- Operates on 13.8 Vdc from controller
- All antenna inputs are switched to ground when not selected or power is off
- Aluminum cabinet painted dark gray
- Flanges for mounting indoors or in an outdoor weatherproof enclosure - mounting flange holes are 3/16 in. (5 mm)
Specifications
Brand:
Manufacturer's Part Number:
AS-82F
Part Type:
Product Line:
DXE Part Number:
HPY-AS-82F
Control Component Type:
Multi-Port Antenna Relay Unit
Overall Width (in.):
14.00 in.
Overall Height (in.):
2.00 in.
Overall Depth (in.):
7.087 in.
Quantity:
Sold individually.
Notes:
Additional device(s) required for operational system. See text.
