Hamplus AS-86F Antenna Switch 8 Antenna Inputs to 6 Radio Outputs

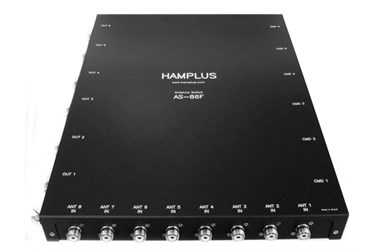

Hamplus AS-86F Antenna Switch (click to enlarge)
Hamplus AS-86F Antenna Switch
- Hamplus AS-86F Antenna Switch relay units have eight antenna inputs and six radio outputs
- Remote control by Hamplus Smart Antenna Switch Control, model MBD-8E or MBD-8F
- Allows simultaneous operation of each radio with different antennas
- SO-239 (UHF female) RF connectors and a DB-25F for remote control
- 5000 watts PEP power handling at SWR of 1.7:1 less
- DC to 60 MHz frequency coverage
- 68 dB or better port isolation at 30 MHz and below
- 64 dB or better port isolation at 54 Mhz and below
- Operates on 13.8 Vdc from controller
- All antenna inputs are switched to ground when not selected or power is off
- Aluminum cabinet painted dark gray
- Flanges for mounting indoors or in an outdoor weatherproof enclosure - mounting flange holes are 3/16 in. (5 mm)
Specifications
Brand:
Manufacturer's Part Number:
AS-86F
Part Type:
Product Line:
DXE Part Number:
HPY-AS-86F
Control Component Type:
Multi-Port Antenna Relay Unit
Overall Width (in.):
11.54 in.
Overall Height (in.):
2.00 in.
Overall Depth (in.):
15.630 in.
Quantity:
Sold individually.
Notes:
Additional device(s) required for operational system. See text.
