Instruction Sheets for Part Number HPY-RC-12
Hamplus Antenna Control Switching Devices
Manual Control Console, for 12 and 8 Input Switches, Interlock for Multiple Radio Operations, 13.8 Vdc, Each
See More Specifications
Estimated Ship Date: Today Would you rather pick it up?
Overview
Hamplus RC-12 Manual Control Console for Remote Antenna Switches

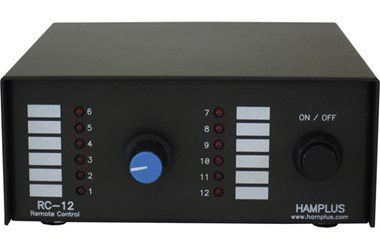

RC-12 front view
- Manual control unit for remote Hamplus Antenna Switch models AS-1202F, AS-1204F and AS-1206F
- Each radio position uses one controller, allowings simultaneous operation of each radio with different antennas
- Interlock feature prevents more than one radio from selecting the same antenna
- Rotary switch with LED indicators for antenna selection confirmation
- Erasable label space for pencil notation of each antenna name
- Connects to antenna switch with cable assembly model CC-5M or equivalent DB25M to DB25M
- Connects to every other RC-12 in the system with DB15F to DB15M cable assemblies for interlock

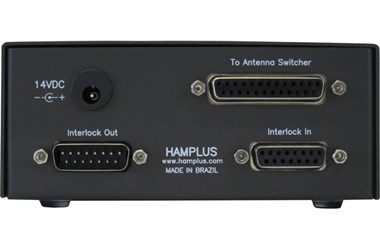

RC-12 rear view
Specifications
Brand:
Manufacturer's Part Number:
RC-12
Part Type:
Product Line:
DXE Part Number:
HPY-RC-12
Control Component Type:
Manual Control Console
Quantity:
Sold individually.
Notes:
Additional device(s) required for operational system. See text.
