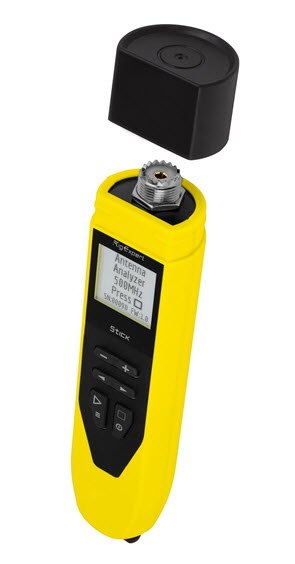

RigExpert Stick 500 Analyzer

RigExpert Stick 500 Analyzer is the third member of the Stick analyzer family, well known to enthusiasts of RF electronics technology for incredible ease of use. Smart, fast, handy, and even more powerful than others, the Stick 500 works any time, any place and in any weather. Like all Stick analyzers, it is capable of 16 hours of continuous measurements without battery recharging.

RigExpert Stick 500 Analyzer is designed for measuring the standing wave ratio (SWR) and return loss, amplitude, and phase angle, as well as the value of active (R) and reactive (X) resistance, including sign, inductance (L) and capacitance (C) in parallel and series modes of antennas, cables, lines, filters and other systems in the range of 100 kHz to 500 MHz.

Inside the Box:

• RigExpert Stick 500 antenna analyzer (with an internal rechargeable Li-ion battery type 18650)

• Quick start guide

• Lanyard

• USB cable



RigExpert Stick 500 Analyzer Specifications:

Frequency range: from 0.1 to 500 MHz

Frequency input step: 1 kHz

Measurements for 25, 50, 75, 100, 150, 200, 300, 450, and 600 Ohm systems

SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes

Range R and X: 0… 10000, -10000… 10000

Operating modes:

SWR, Return loss, R, X, Z, L, C, magnitude, and phase angle at one frequency.

SWR chart, 100 points.

Multé mode – for quick testing of a multi-band antenna.

HF output:

Connector type: UHF (SO-239).

Output signal shape: square, from 0.1 to 500 MHz.

Output power: -10 dBm (at a load of 50 Ohms).

Power:

One lithium-ion battery 3.7 V type 18650 (rechargeable)

When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources

Interface:

High contrast E Ink display with a pixel size of 200 × 200

2 × 3 keys on the waterproof keyboard

English menu and help screens

USB connection to a personal computer

Bluetooth: v.4.2 BLE Single Mode, Class B

Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches)

Operating temperature: -15° … 40 ° C (5 … 104 ° F)

Weight: 185 g (6.5 ounces) with battery

Warranty: 2 years

GTIN-13: 4820185420358

RigExpert Stick is made in Ukraine.

* All specifications are subject to change without notice or obligation.
