Toptek Communications PA-180V VHF 138-174 MHz 180W Power Amplifier

Toptek Communications PA-180V VHF Power Amplifiers are very stable Solid State linear amplifiers designed for Amateur Radio 2 Meter FM, SSB and CW operations and Commercial communications. Dual MOSFET push-pull PAs provide full RF output* of 180 watts with only 5 watts input, making this amplifier useful for both handheld and compatible mobile VHF transceivers.

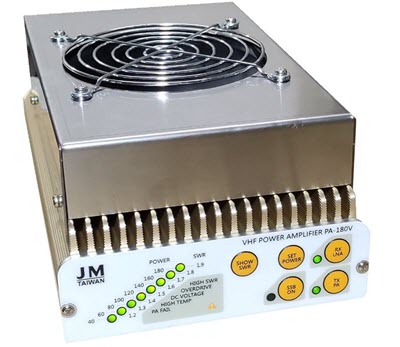

Front panel push-buttons select Mode, RX preamp, SWR meter and Power Output Settings of 60, 100, 140, or 180 watts. The front panel multi-color 8 LED string serves to indicate output power settings, output power, SWR and Error.

A unique shroud enables the oversize fan to quietly cool this compact amplifier for safe, long-term operation at full power. Multiple protection circuits, a 21dB Receive Low Noise Amplifier (LNA), RF sense or PTT keying (required for SSB/CW) and a large, quiet thermostatically controlled fan are some of the great features of this Toptek VHF amplifier. True 50 ohm Type-N connectors maintain the highest efficiency to the feedline and the antenna.

*Requires 13.8 VDC @ 30A max. (External power supply not included).

Features of the Toptek PA-180V VHF Amplifier:

• Wideband VHF power amplifier delivers 180 watts RF output typically with only 5 watts of drive power

• Multi-color multi-purpose LEDs display power settings, power output, SWR and error conditions

• Output power (FM) is selectable between four user programmable levels

• Selectable FM or SSB/CW modes with key-up delay and peak power indication

• RF sense or PTT keying (menu selected)

• Multiple protection features: high drive, high SWR, high/low DC voltage, high temperature

• Automatic Control for output power regulation and high SWR protection

• Receiver Low Noise Amplifier (LNA)

• Single oversized low noise thermostatically controlled fan

Toptek PA-180V Specifications:

• Frequency Range 138 - 174 MHz

• Output Power: 180 watts, typical @ 5 watts Input**

• Input Power Range: 1 - 10 watts

• Input Power for Full Output: 5 watts (frequency dependent)

• RF Bypass Maximum: 50 watts

• Harmonic Suppression 60 dBc

• Modes: FM, SSB, CW

• Circuit Type: Two MOSFET, PUSH-PULL amplifiers combined

• Receiver Preamplifier Gain: Typ. 21dB

• Noise Figure: Typ. 2.4 dB

• Supply Voltage: 13.8 VDC***, Minimum: 10.5 VDC, Maximum: 14.8 VDC

• Supply Current at 180W Output: 27 A (30 A peak max., frequency dependent)

• Standby Current: 8 mA all functions OFF; 35 mA TX PA enabled; 80 mA RX LNA enabled; 88 mA TX PA and RX LNA enabled

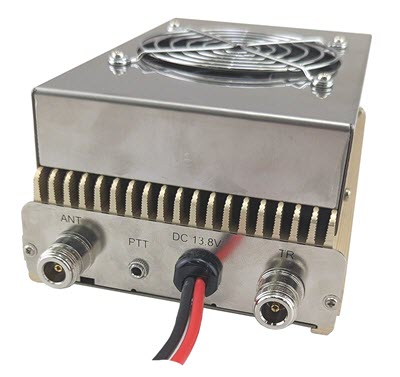

• External PTT Keying Connector: 3.5mm female stereo (1/8 in. TRS jack: ground Tip for PTT)

• RF Connectors: Type N female (50 ohm, low loss)

• Dimensions, w/o connectors (WHD): 4.875 x 3.375 x 7.750 in. (124 x 86 x 197 mm)

• Weight: 2.54 lbs. (1.15 kg)

** Refer to performance curves in manual

*** Lower voltage will limit amplifier maximum power; required external DC power supply not included
